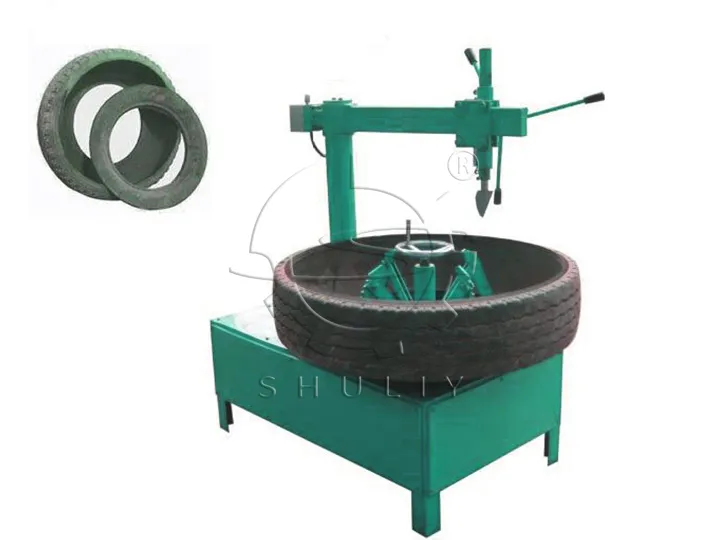

Tire sidewall cutter is an essential machine in waste tire recycling lines. It is specifically designed to remove the tire sidewalls containing the steel bead from waste tires before further processing. By cutting off the sidewalls, it makes the tires easier to feed into tire strip cutters, block cutters, and rubber powder grinding machines, forming a semi-automatic rubber powder production line. The removed sidewalls can be processed by bead wire separator to extract the steel wire for resale, maximizing recycling value.

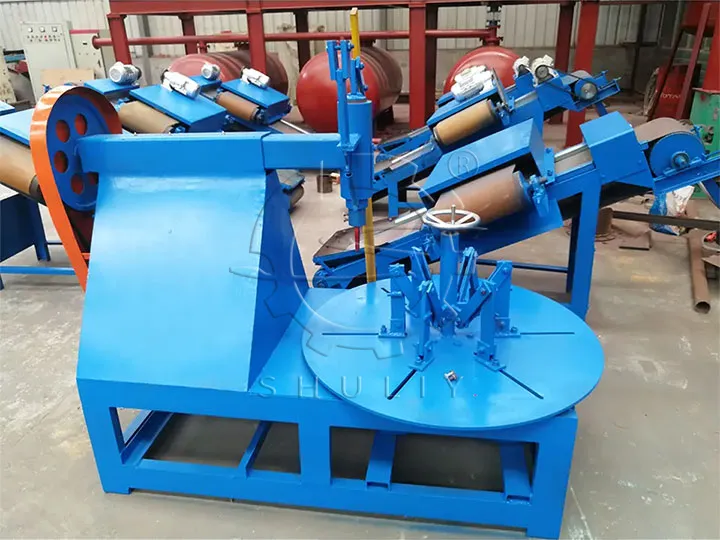

Application of the Tyre Bead Cutting Machine
This tire sidewall cutter is used for cutting the bead and sidewall part of car tires, truck tires, and OTR tires (650-1200 mm diameter). It is suitable for both nylon and steel radial tires. The cutting process only takes about 3 minutes per tire, which greatly improves efficiency in tire recycling plants.
Tire Sidewall Cutter Working Principle

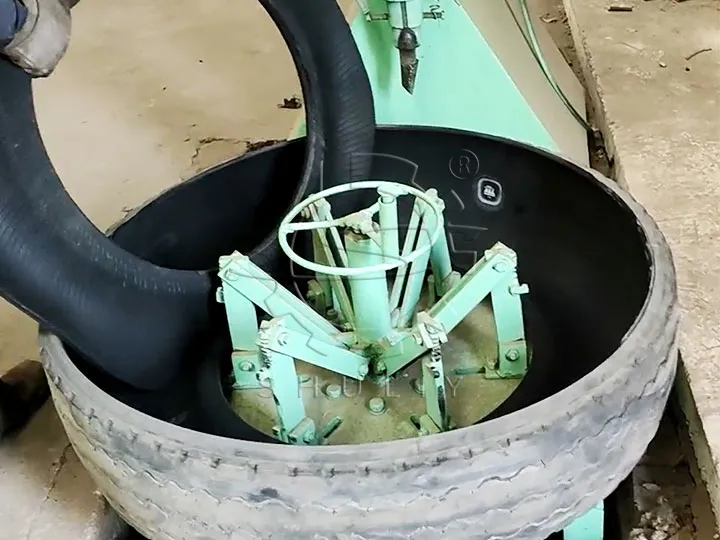

Place the waste tire securely on the rotating table, lower the alloy cutting blade with the control lever to cut into the sidewall, and let the rotating table drive the tire to rotate. The blade follows its track to smoothly cut off the entire sidewall. After cutting, raise the blade and remove the separated sidewall and tire body. The whole process can be completed in about one minute.
Tire Sidewall Cutter Machine Working Video
Features & Advantages of Tire Bead Cutting Machine
- Efficient Cutting: Removes tire sidewalls quickly, saving labor.
- Wide Range: Can handle car, truck, and OTR tires.
- Durable Blade: Alloy tool ensures long service life and stable cutting quality.
- Easy Operation: Simple structure and reliable clamping system.

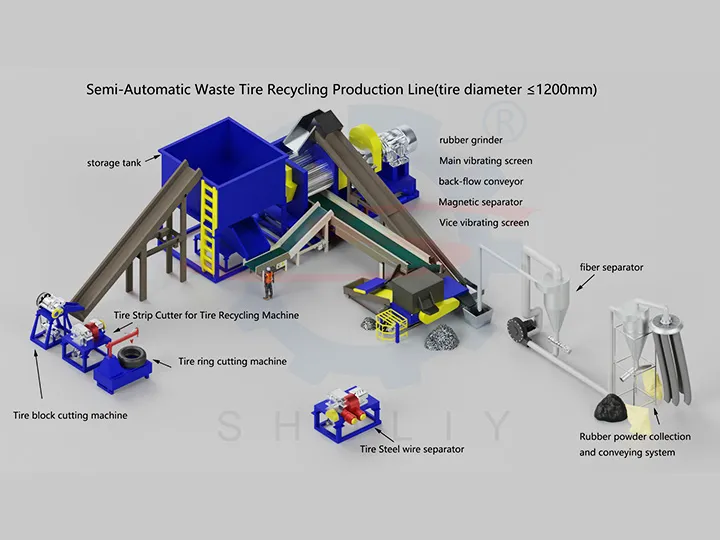

- Integration: Works perfectly with tire strip cutter, tire block cutter, bead wire separator, and rubber powder mill to form a complete recycling solution.
Tire Sidewall Cutter Technical Parameters
- Motor Power: 4 kW + 0.75 kW
- Capacity: 40 pcs/h
- Work Range: ∮650–1200 mm
- Dimensions (L×W×H): 1.8 m × 1.3 m × 1.6 m
- Weight: 650 kg

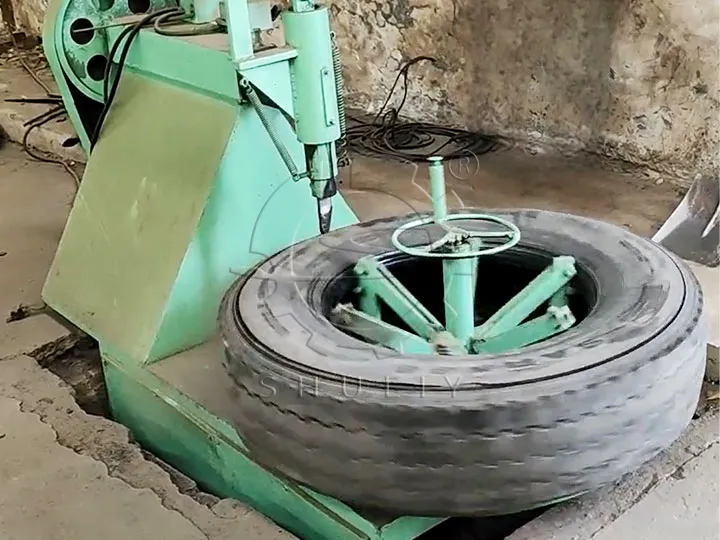

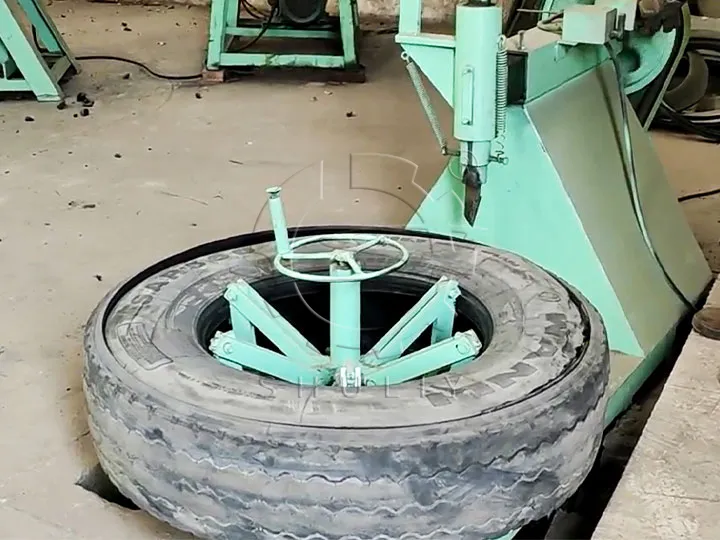

Why Choose Our Tire Ring Cutter
Our machine is designed for high productivity and durability, helping tire recycling plants reduce manual work and improve output. With a cutting range of 650–1200 mm, it meets most recycling needs for medium to large tires. We also provide customized solutions based on your production capacity and plant layout. Should you require our assistance, please do not hesitate to contact us at any time.
