Shuliy’s waste cloth cutting machines are specifically designed for cutting soft waste materials, including old clothes, fabric scraps, textile waste yarn, synthetic fibers, cotton, jute, leather, and plastic films. We offer five different models with processing capacities ranging from 300 to 5000 kg/h. The cutting size can be adjusted from 5 to 300 mm, and the cutting thickness ranges from 20 to 200 mm, meeting the diverse material and processing requirements of different customers.
Raw Materials for Fibre Cutting Machine
- Old clothes and fabric offcuts
- Cotton, polyester, and blended fabrics
- Jute and non-woven fabrics
- Waste leather
- Plastic films, woven bags, and other soft plastics
These materials are large and irregular in their unprepared state, so they are pre-sized using a waste cloth cutting machine to prepare them for the next step of opening and reworking.
Key Features and Advantages
Shuliy’s fabric waste cutting machine is designed for durability and practicality. Its main features include:
- Five models with capacities ranging from 300 kg/h to 5000 kg/h,
- Adjustable cutting length from 5 to 300 mm and thickness from 20 to 200 mm,
- Equipped with high-strength alloy steel blades that are wear-resistant and durable,
- Cutting chamber size, blade spacing, and discharge methods can be adjusted based on material type and customer requirements.
Working Principle of Waste Cloth Cutting Machine

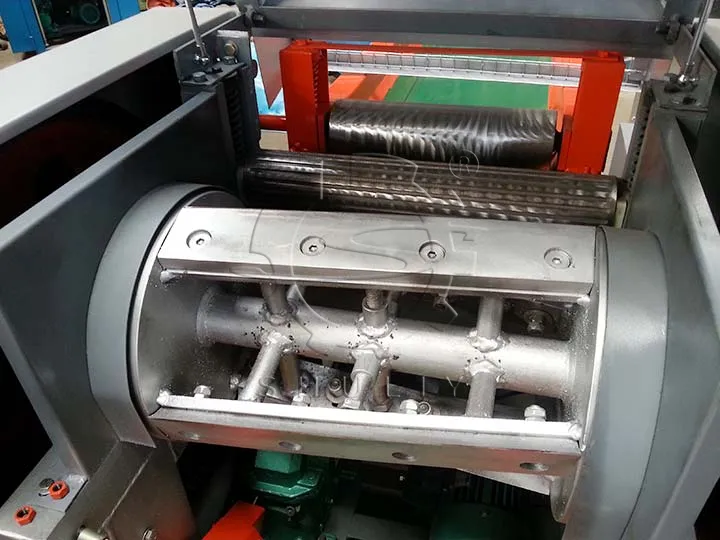

The fiber cutting machine is suitable for cutting various types of fiber waste, such as glass fiber, aramid fiber, and synthetic fiber. The machine adopts a cutting structure with two fixed blades and four movable blades. During operation, raw materials are fed into the machine and are cut into small pieces as they pass through the fixed blade, driven by the high-speed rotation of the movable blade roller.
The entire process is efficient and stable, suitable for continuous operation, making it a reliable machine for the pre-treatment of various fiber materials.
Parameters of The Textile Cutting Machine
| Model | 500 | 800 | 1200 | 1600 | 2400 |
| Motor Power | 5.5 + 1.5 kW | 7.5 + 1.5 kW | 15 + 2.2 kW | 18.5 + 3.0 kW | 22 + 3.0 kW |
| Dimensions | 3200×1000×1200 mm | 3200×1000×1200 mm | 7000×1500×1500 mm | 7000×1800×1950 mm | 5800×2200×1950 mm |
| Theoretical Capacity | 300–500 kg/h | 500–800 kg/h | 800–1200 kg/h | 1000–3000 kg/h | 2000–5000 kg/h |
| Cutting Size | 5–150 mm | 5–150 mm | 5–150 mm | 5–300 mm | 10–300 mm |
| Blade Material | alloy tool steel | alloy tool steel | alloy tool steel | alloy tool steel | alloy tool steel |
| Number of Fixed Blades | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
| Number of Moving Blades | 4 pcs | 4 pcs | 4 pcs | 4 pcs | 4 pcs |
| Cutting Thickness | 20 mm | 30–50 mm | 30–50 mm | 30–150 mm | 30–200 mm |
Here are the main specifications of our five models of waste cloth cutting machines. We also offer customized solutions to meet your specific needs. Feel free to contact us for more information on machine pricing, shipping details, and after-sales support.
How To Buy Fabric Waste Cutting Machine?
If you are interested in purchasing a waste cloth cutting machine, we welcome you to contact us first and let us know the type of materials you need to process, your capacity requirements, cutting size, and other basic information.
As an experienced textile cutting machine manufacturer, we will recommend the most suitable model or offer a customized solution based on your actual needs. After confirming the plan and quotation, we will sign a contract and arrange production. Once the machine is completed, we can assist with shipping arrangements and provide installation guidance and after-sales support to ensure smooth operation at your facility.
